Anomaly 45

Points: 78

This is a simple “login” program for the Nuclear Power Plant. This program was created with no intention of security, so it was designed to have a single user and a single password. What is the flag? Answer format: flag {hidden_flag}

The provided file is a 32-bit ELF executable. First, we can run strings on the executable. Among the results are:

1
2
3
4
5
6

Username:
peuFTW
Invalid user.
Password:
flag{%s_%d}
Invalid password.

We can guess that the username is “peuFTW”.

Then, we can disassemble the executable with IDA Pro (or, alternatively, with objdump, as this executable isn’t very complicated). We can see that the majority of the functionality is in the method peu. Let’s take a look at this method:

1
2

.text:000005D4                 call    __x86_get_pc_thunk_bx
.text:000005D9                 add     ebx, 1A27h

peu calls __x86_get_pc_thunk_bx, which “loads the position of the code into the %ebx register, which allows global objects (which have a fixed offset from the code) to be accessed as an offset from that register”. [1] Thus %ebx will hold the value of 0x2000 (0x5D9 + 0x1A27) and serve as the base address for referencing global strings.

1
2
3
4
5

.text:000005F8                 lea     eax, [ebp+var_19]
.text:000005FB                 push    eax
.text:000005FC                 lea     eax, [ebx-1875h]
.text:00000602                 push    eax
.text:00000603                 call    ___isoc99_scanf

peu reads user input and stores it at ebp+var_19.

1
2
3
4
5

.text:0000060E                 lea     eax, [ebx-1872h]
.text:00000614                 push    eax             ; char *
.text:00000615                 lea     eax, [ebp+var_19]
.text:00000618                 push    eax             ; char *
.text:00000619                 call    _strcmp

It then compares the user input with a global string at ebx-1872h, which we know is 0x78E. The string stored at 0x78E is “peuFTW”. Thus we know this is the correct username.

1
2
3
4
5

.text:0000065C                 lea     eax, [ebp+var_20]
.text:0000065F                 push    eax
.text:00000660                 lea     eax, [ebx-1852h]
.text:00000666                 push    eax
.text:00000667                 call    ___isoc99_scanf

peu reads user input again and stores it at ebp+var_20.

1
2

.text:0000066F                 mov     eax, [ebp+var_20]
.text:00000672                 cmp     eax, 712h

It then compares the user input with 0x712. Thus we know the correct password is 0x712, which is 1810 in decimal.

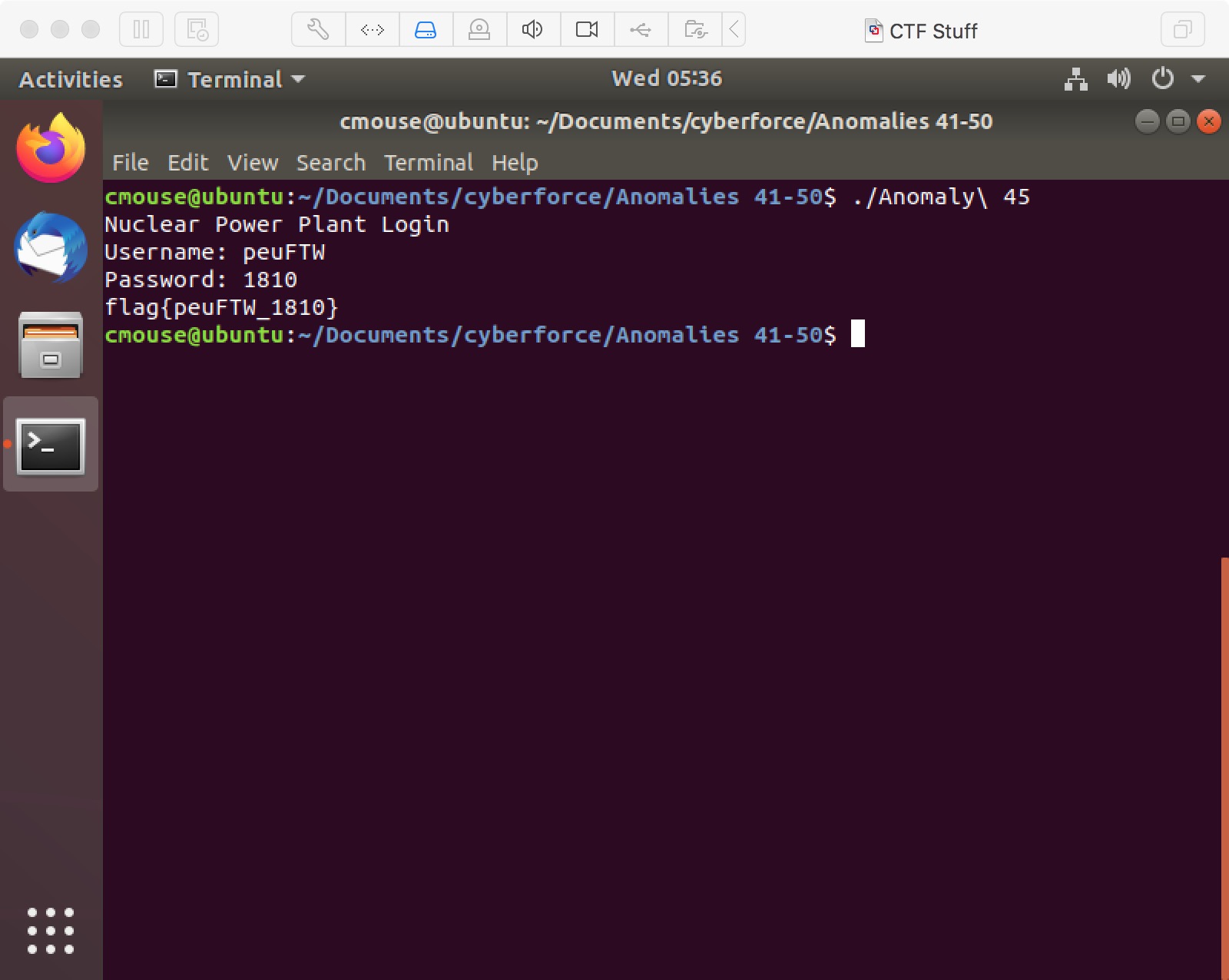

Running the executable, we see that this is indeed the correct credentials:

References:
[1] https://stackoverflow.com/questions/6679846/what-is-i686-get-pc-thunk-bx-why-do-we-need-this-call
